UVMAX

Third harmonic conversion unit

Features:

  • Third harmonic output (343 nm)
  • Works with all ultrafast 1030 nm lasers
  • High conversion efficiency (>25%)
  • Easy alignment
  • Low noise
  • Customizeable upon request
Contact Sales

UVMAX is a third harmonic unit which converts the output of any existing 1030 nm ultrafast laser to 343 nm pulses. The system is easy to align and offers high conversion efficiency, and is therefore a perfect choice for applications that benefit from UV radiation.

Product specifications

Typical pump characteristics:



  • Wavelength: 1030 nm
  • Pulse duration: ~200 fs
  • Pulse energies: 10-250 µJ
  • Beam radius: 1-2.5 mm

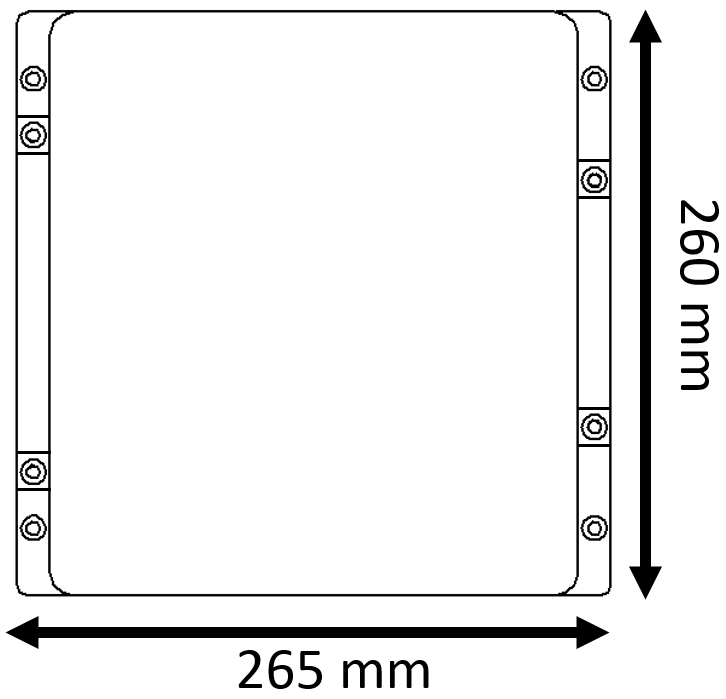

Top view of UVmax

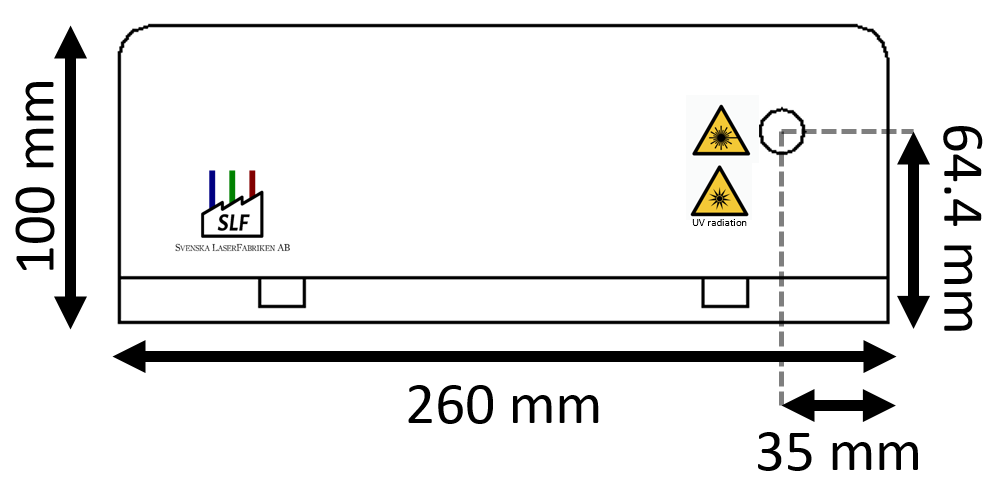

Side view of UVmax

Typical output characteristics

Output energies

Output power scaling

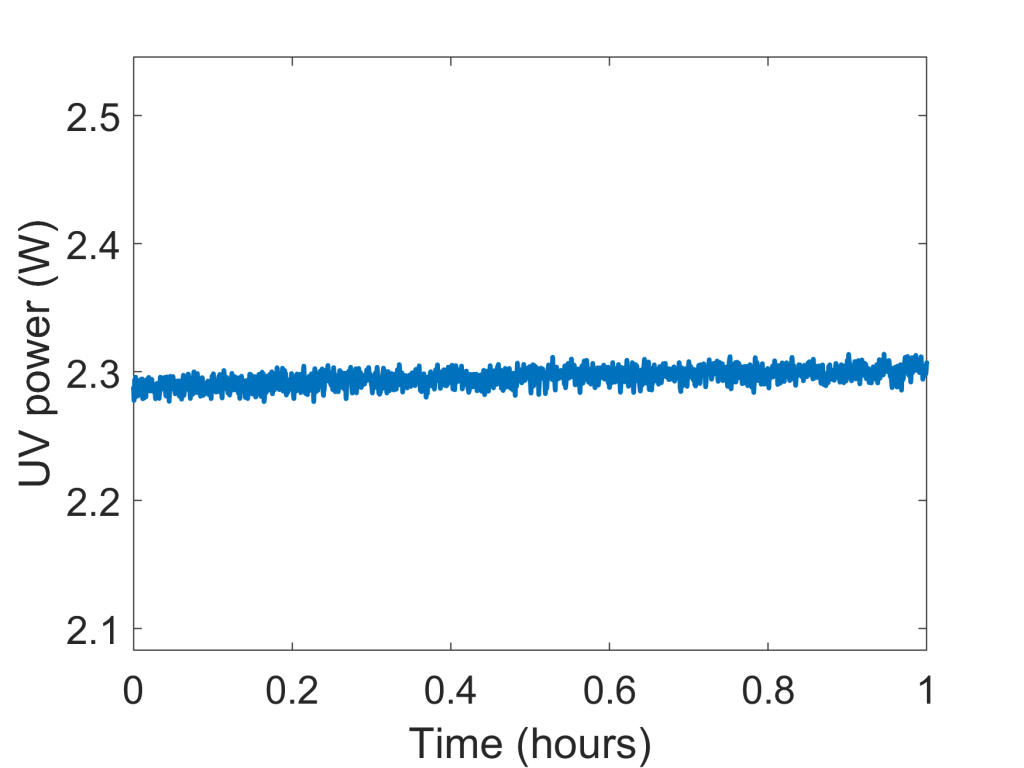

Output power stability
